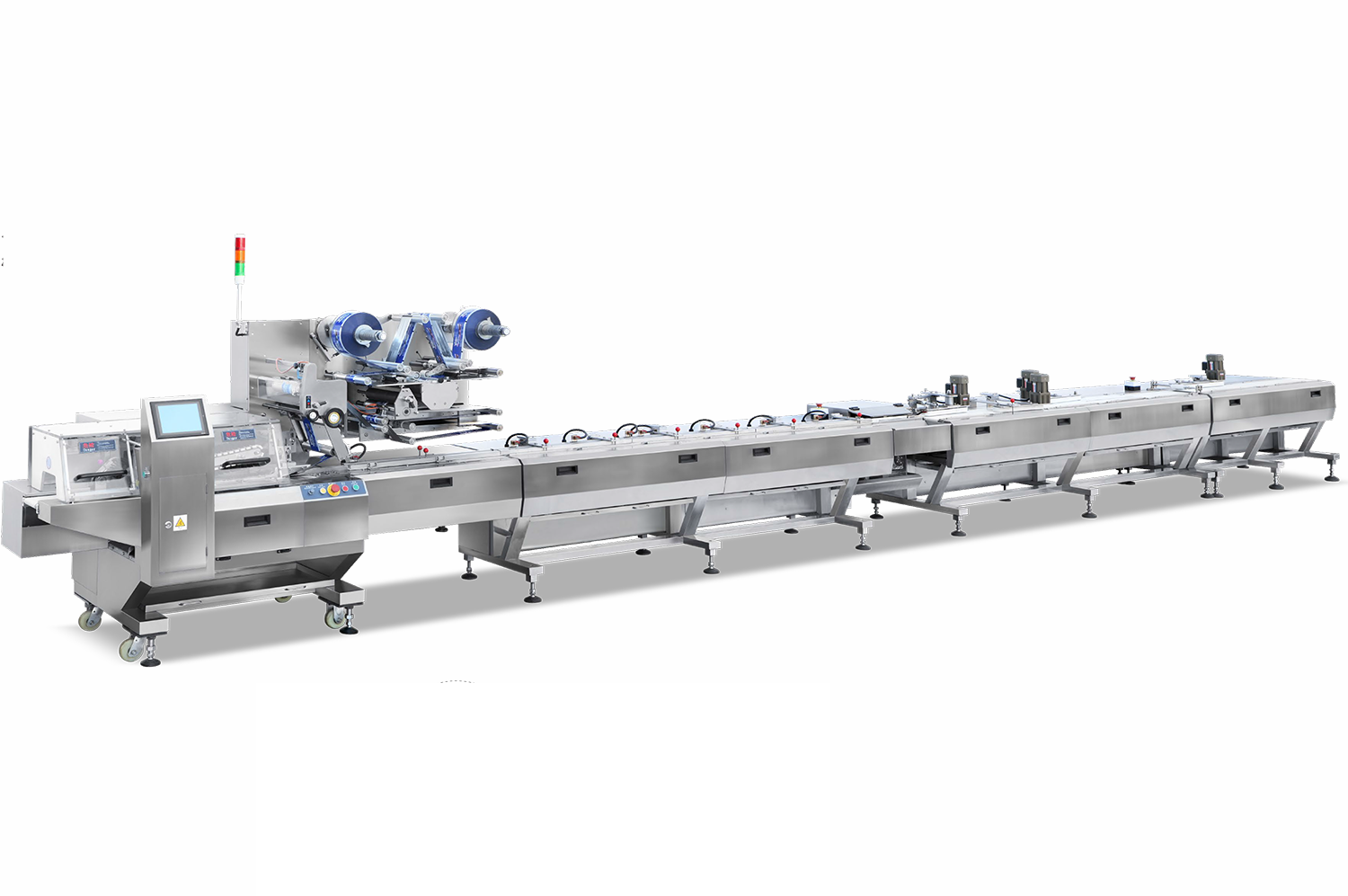

DXD-660高速自動理料枕式包裝線

USE用途

包裝機型號：DXD-660高速自動理料枕式包裝線

This machine is suitable for packing chocolate, wafer, confectionery,coated product and so on.

適用于巧克力、威化、膨化、米果、面包、蛋糕、瑞士卷、糖果等及其涂層制品的包裝。

自動理料枕式包裝線的主線物料分配系統采用中央集成控制系統，根據產品來料速度和數量自動調整分配；理料單元通過伺服和PLC控制將產品有序，順暢，無損傷的進入包裝系統，實現產品輸送，整理排隊，供料自動化，定位準確，無空包多包現象；根據生產能力，可選多級理料單元，包裝單元數量（包裝機可根據產品選配）。

The main line material distribution system of automatic material handling pillow type packaging line adopts central integrated control system, which can automatically adjust the distribution according to the product incoming speed and quantity; the material handling unit will enter the packaging system orderly, smoothly and undamaged through servo and PLC control, so as to realize the product transportation, sorting and queuing, automatic feeding, accurate positioning, and no empty and multi package phenomenon; according to the production capacity, the system has the advantages of easy operation, convenient operation and high quality , multi level material handling unit and number of packaging units (packaging machine can be selected according to the product).

MAIN TECHNICAL PARAMETERS包裝機的主要技術參數

DXD-660

Note: We can design and manufacture according to customer's special needs. 注：用戶如有特殊規格，本公司可另行設計制造.

Characteristics 包裝機特點

1 This machine is driven by servo motors, which helps achieve more

convenient operation and easier maintainance

2 This machine adopts wrapping film auto splice device, which helps

the machine achieves splicing of film without stopping machine

3 It adopts 304 stainless steel cover

4 Famous brand of control system, makes sure of stable working of

machine

5 Touch screen and plc help operating of machine more intuitive.

6 Adopts water chiller for chocolate products, to prevent chocolates

from being melt during packing.

7 To ensure fast packing speed, our machine uses 3sets of middle

seal wheels together with preheating.

8 The machine is equipped with remote control system, which makes

solving of program problems much easier.

1）伺服控制，使得操作更加方便，維護更加簡單；

2）自動接膜裝置，實現了接膜不停機；

3）整機外殼采用304不銹鋼；

4） 品牌的控制系統，保障了整機操作的穩定性；

5）觸摸屏，PLC使得操作更加直觀；

6) 對于巧克力產品采用水冷結構，保護巧克力產品在包裝過程中

和設備的接觸面不易融化；

7）三道縱封加預熱塊的設計，保障了設備的高速運行；

8）包裝機配備遠程控制系統，能更加方便的解決軟件問題。
